Meet Vertex — your essential partner in liquid particle monitoring for critical process fluids. Engineered for precision, reliability, and regulatory peace of mind, Vertex makes it effortless to uphold and document the highest standards in your environment.
With advanced optical technology, user-friendly touchscreen interface, and a compact, chemically resistant chassis, Vertex enables fast, confident monitoring anywhere liquid particulates matter: pharmaceuticals, semiconductors, and beyond. Shift easily through sample groups, set custom thresholds, and rely on high-throughput data capture, all from a unit designed to keep your teams nimble and your results bulletproof.
Vertex isn’t just compatible. It’s transformative. With beautifully intuitive software and adaptable sample management, Vertex reimagines what’s possible in fluid cleanliness. Tap. Scan. Sample. Your protocols come to life. Structured, error-proof, uniquely yours. Connect seamlessly to barcodes, networks, and data systems. Integration is no longer something you set up. It’s something you feel, every time you use Vertex.
Download the DatasheetCompliance isn’t a hurdle, it’s a superpower. Vertex quietly handles the heavy lifting with intelligent audit trails, secure multi-user controls, and the assurance of 21 CFR Part 11. Every sample, every action, every user... captured, encrypted, ready when you need it.
Regulatory readiness becomes invisible, perfect, and always on, so you can focus on what matters most: breakthrough results.
Learn about Going PaperlessTake Vertex anywhere your process demands. It’s meticulously crafted to be lighter, smaller, and easier to position; ready to fit your workflow and your workspace, wherever that takes you. The compact form disappears into your day, while the vibrant color touchscreen makes every interaction feel effortless. From benchtop to basin, every detail is considered, every movement frictionless.
Implement Your Own SystemVertex is engineered for the real world: inside and out. Its sealed, chemically resistant enclosure stands up to spills, cleans in seconds, and keeps pace with rapidly shifting environments. Inside, always-on diagnostics give you peace of mind, continuously monitoring for peak performance and alerting you before issues arise. Go ahead... push it, move it, trust it. Vertex is as resilient as your commitment to quality.

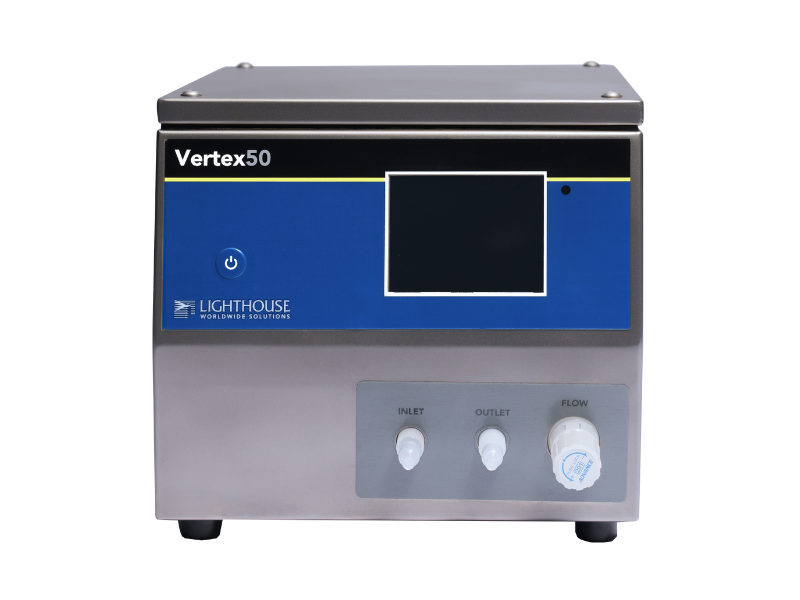

Learn about SystemsThe Vertex50 detects particles as small as 50 nanometers in ultra-pure DI water
Annual calibration by a certified Lighthouse provider is needed to ensure accuracy
Yes, it’s designed for continuous 24/7 operation, making it perfect for demanding environments
The instrument supports Ethernet (MODBUS TCP/IP), Serial RS-485 MODBUS, and analog 4-20mA outputs for easy integration
The Vertex50 has a step-by-step cleaning procedure using a supplied cleaning kit and DI water to prevent sensor errors and keep counts accurate
| Calibration | NIST traceable |
|---|---|
| Count Data | Four channels of simultaneous data |
| Detection | Detects liquid particles as small as 50 µm |
| Alarms | Leak detection sensor |
| Zero Count | ≤ 20 count/L |
| Data Output | Ethernet, RS485 Modbus Serial, 4-20mA |
| Display | TFT color touch screen |
| Enclosure | NEMA style enclosure |
| Calibration | NIST traceable |
|---|---|
| Count Data | Two or four channels of simultaneous data |
| Detection | Detects liquid particles as small as 100 µm |
| Alarms | Leak detection sensor |
| Zero Count | ≤ 20 count/L |
| Data Output | Ethernet, RS485 Modbus Serial, 4-20mA |
| Display | TFT color touch screen |
| Enclosure | NEMA style enclosure |
| Minimum Size | 50 µm |
|---|---|
| Channel Sizes | 50, 100, 150, 200 µm |
| Flow Rate | 100 mL per minute |
| Sample Volume | 5.0 mL/min |
| Concentration Limits | 10,000 counts/mL @ 10% coincidence loss |
| Communication Modes | MODBUS TCP, MODBUS Serial, 4-20mA |
| Dimensions | 9.0”(w) x 13.4”(d) x 8.4”(h) |
| Weight | 13.5 lbs (6.1 kg) |

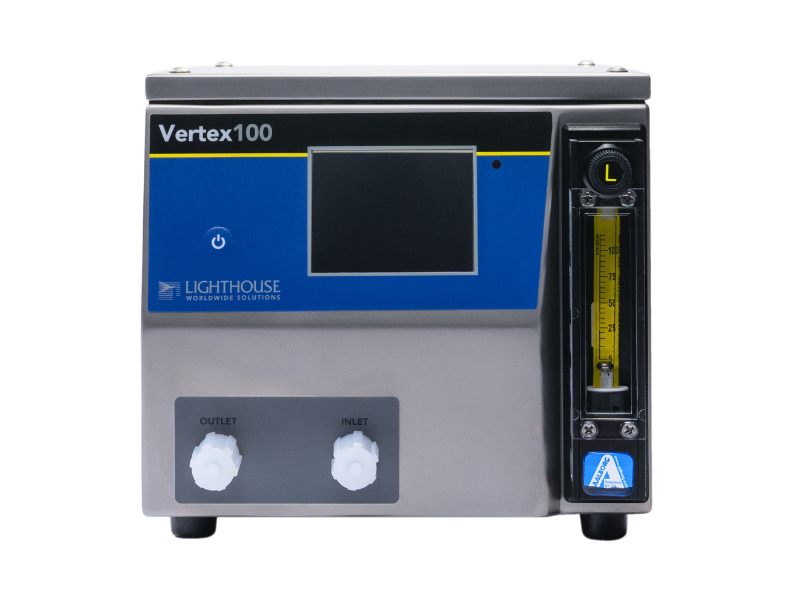

| Minimum Size | 100 µm |
|---|---|
| Channel Sizes | 100, 200, 300, 500 µm |
| Flow Rate | 100 mL per minute |
| Sample Volume | 5.0 mL/min |
| Concentration Limits | 10,000 counts/mL @ 10% coincidence loss |
| Communication Modes | MODBUS TCP, MODBUS Serial, 4-20mA |
| Dimensions | 9.0”(w) x 13.4”(d) x 8.4”(h) |
| Weight | 12.5 lbs (5.67 kg) |
For additional technical specifications, please see the product datasheet.
Liquid particle counting doesn’t have to be complex.
Vertex brings together the best technology, audit-ready reporting, and industrial durability.
