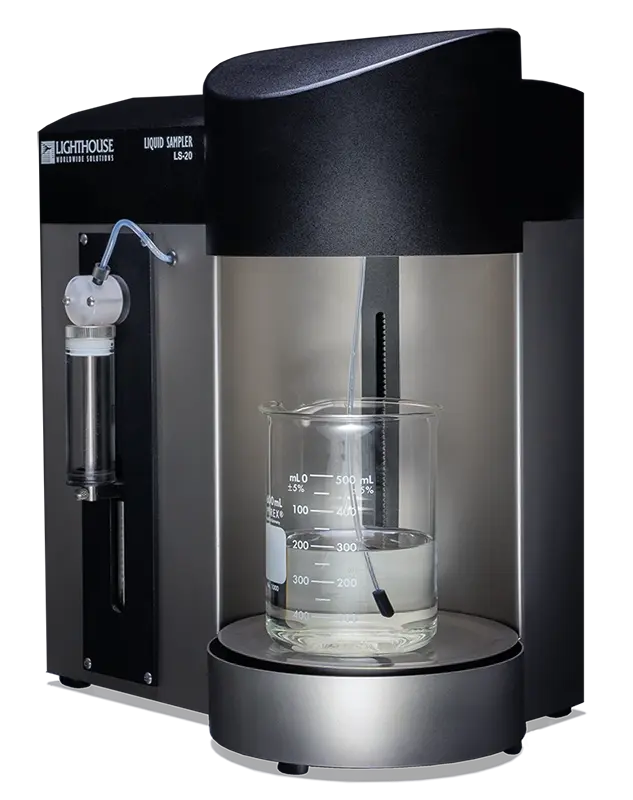

The LS Series Liquid Batch Samplers from Lighthouse Worldwide Solutions are revolutionizing liquid particle analysis in pharmaceutical quality control and biopharmaceutical manufacturing. These innovative devices combine an integrated syringe sampler with a cutting-edge optical particle counting system – offering a comprehensive solution for facilities that demand precision and efficiency in their liquid sampling processes.
It’s not just your next batch sampler – it’s your gateway to a new era of quality control.
Imagine walking into your lab and being greeted by the sleek, stainless steel enclosure of the LS Series. Its compact footprint means it fits seamlessly into your workspace, ready to revolutionize your liquid sampling routine.
The built-in magnetic stirrer ensures your samples are consistently mixed, eliminating the need for manual agitation and reducing the risk of human error.
Download the DatasheetAs you power up the LS series Batch Sampler, you're met with an intuitive Windows-based software interface designed with 21 CFR Part 11 compliance in mind. Gone are the days of complex setup procedures and confusing data interpretation.
With pre-configured USP 788 recipes at your fingertips, you can start your batch sampling with just a few clicks. The software guides you through each step, making it accessible for both seasoned professionals and newcomers to the field.
Download Pharmacopeia RecipesThe heart of the LS lies in its high-accuracy syringe pump flow control system. This advanced technology allows you to adjust sample volumes from as little as 1 ml to as much as 1000 ml, giving you the flexibility to handle a wide range of batch sampling applications.
The LS captures data across eight particle size channels ranging from 1.0 to 50.0 microns, ensuring comprehensive particle analysis for your samples.
Explore LMS PharmaAs your samples are processed, real-time graphs and tables materialize on your screen, offering immediate insights into your sample's composition. This instant feedback allows you to make quick decisions and adjustments to your processes, potentially saving valuable time and resources in your pharmaceutical manufacturing workflow
Learn about FMSIn the complex world of pharmaceutical and medical device manufacturing, regulatory compliance is paramount. The LS-20 takes the stress out of this process by offering built-in reporting features that align with international regulatory standards, including EP, KP, JP, and USP 788 requirements.
With the touch of a button, you can generate comprehensive reports, ensuring that your data is always audit-ready and compliant with industry standards
Cleanroom Certification
| Calibration | NIST traceable |
|---|---|
| Reports | Current USP, EP, JP, KP, CP and custom recipes |
| Detection | Detects liquid particles as small as 1.0 µm |
| Sample Volume | 1 mL to 1 Liter |
| Laser Source | Laser diode |
| Data Output | RS-485 MODBUS |
| Syringe | 10 mL, 25 mL integrated |
| Enclosure | Stainless Steel |
| Calibration | NIST traceable |
|---|---|
| Reports | Current USP, EP, JP, KP, CP and custom recipes |
| Detection | Detects liquid particles as small as 0.1 µm |
| Sample Volume | 1 mL to 1 Liter |
| Laser Source | Laser diode |
| Data Output | RS-485 MODBUS |
| Syringe | 10 mL, 25 mL integrated |
| Enclosure | Stainless Steel |
| Minimum Size | 1.0 µm |
|---|---|
| Channel Sizes | 1, 2, 3, 5, 10, 15, 25, 50, 100, 200 μm |
| Flow Rate | 20 mL per minute |
| Sample Volume | 5.0 mL/min |
| Syringe Sizes | 10 ml, 25 ml |
| Communication Modes | RS-485 MODBUS |
| Dimensions | 12.875”(l) x 8.75”(w) x 14.75”(h) |
| Weight | 20.5 lbs (9.3 kg) |
| Minimum Size | 0.1 µm |
|---|---|
| Channel Sizes | 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4, 0.5, 100 µm |
| Flow Rate | 60 mL per minute |
| Sample Volume | 5.0 mL/min |
| Syringe Sizes | 10 ml, 25 ml |
| Communication Modes | RS-485 MODBUS |
| Dimensions | 12.875”(l) x 8.75”(w) x 14.75”(h) |
| Weight | 20.5 lbs (9.3 kg) |
For additional technical specifications, please see the product datasheet.
By choosing the LS, you’re not just acquiring a piece of equipment; you’re gaining a partner in your quest for excellence in liquid batch sampling. From its user-friendly interface to its precise measurements and regulatory compliance features, the LS is designed to simplify your workflows, enhance your data integrity, and ultimately contribute to the success of your facility in biopharmaceutical manufacturing and parenteral drug testing.
Experience the future of liquid batch sampling with the Lighthouse LS series – where precision meets reliability in perfect harmony.
